PRODUCTS

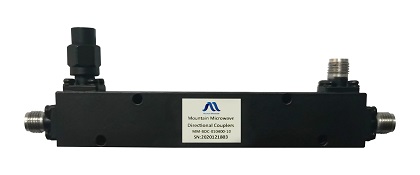

Couplers
Mountain Microwave's couplers are uniquely designed for systems applications where external leveling, precise monitoring, signal mixing or swept transmission and reflection measurements are required. These couplers provide simple solutions for many applications including electronic warfare (EW), commercial wireless, SATCOM, radar, signal monitoring and measurement, antenna beam forming, and EMC testing environments.
Directional Couplers Dual Directional Couplers
Model
Frequency
(GHz)
Min.
Frequency
(GHz)
Max.
Nominal
Coupling
Insertion
Loss
(dB)
Directivity
(dB Min)
VSWR
In/Out
Power
Rating
(Watts)
Standard
Connectors
(Female)
PDF
MM-BDC-010670-10 1 67 10 2.6 8 1.7 50 1.85mm
MM-BDC-010500-20 1 50 20 3 8 1.9 50 2.4mm
MM-BDC-010500-13 1 50 13 3 8 1.8 50 2.4mm
MM-BDC-010500-10 1 50 10 3 9 1.7 50 2.4mm
MM-BDC-060500-20 6 50 10 1.9 10 1.9 20 2.4mm
MM-BDC-180400-20 18 40 20 1.5 12 1.5 20 2.92mm
MM-BDC-180400-10 18 40 10 1.5 12 1.5 20 2.92mm
MM-BDC-060400-20 6 40 20 1.7 10 1.6 30 2.92mm
MM-BDC-060400-10 6 40 10 1.7 10 1.6 30 2.92mm
MM-BDC-040180-30 4 18 30 1 10 1.5 30 SMA
MM-BDC-040180-20 4 18 20 1 12 1.5 30 SMA
MM-BDC-040180-10 4 18 10 1 12 1.5 30 SMA
MM-BDC-020400-20 2 40 20 1.5 10 1.7 20 2.92mm
MM-BDC-020400-10 2 40 10 2.1 10 1.7 20 2.92mm
MM-BDC-020180-30 2 18 30 1 10 1.6 30 SMA
MM-BDC-020180-10 2 18 10 1 12 1.6 30 SMA
MM-BDC-010400-20 1 40 20 2.1 10 1.7 20 2.92mm
MM-BDC-010400-10 1 40 10 2 10 1.7 20 2.92mm
MM-BDC-005180-20 0.5 18 20 2 10 1.7 30 SMA
MM-BDC-005180-10 0.5 18 10 2 10 1.7 30 SMA
MM-BDC-060265-20 6 26.5 20 1 12 1.4 30 SMA
MM-BDC-060265-10 6 26.5 10 1 12 1.4 30 SMA
MM-BDC-020180-20 2 18 20 1 12 1.6 30 SMA
MM-BDC-020080-30 2 8 30 0.3 20 1.3 30 SMA
MM-BDC-020080-20 2 8 20 0.4 20 1.3 30 SMA
MM-BDC-020080-10 2 8 10 0.8 20 1.3 30 SMA
MM-BDC-004060-30 0.4 6 30 1 10 1.5 30 SMA
MM-BDC-004060-20 0.4 6 20 1 12 1.5 30 SMA
MM-BDC-004060-10 0.4 6 10 1 12 1.5 30 SMA
MM-BDC-008025-30 0.8 2.5 30 0.4 18 1.25 50 SMA
MM-BDC-008025-20 0.8 2.5 20 0.4 20 1.25 50 SMA
MM-BDC-008025-10 0.8 2.5 10 0.8 20 1.25 50 SMA
